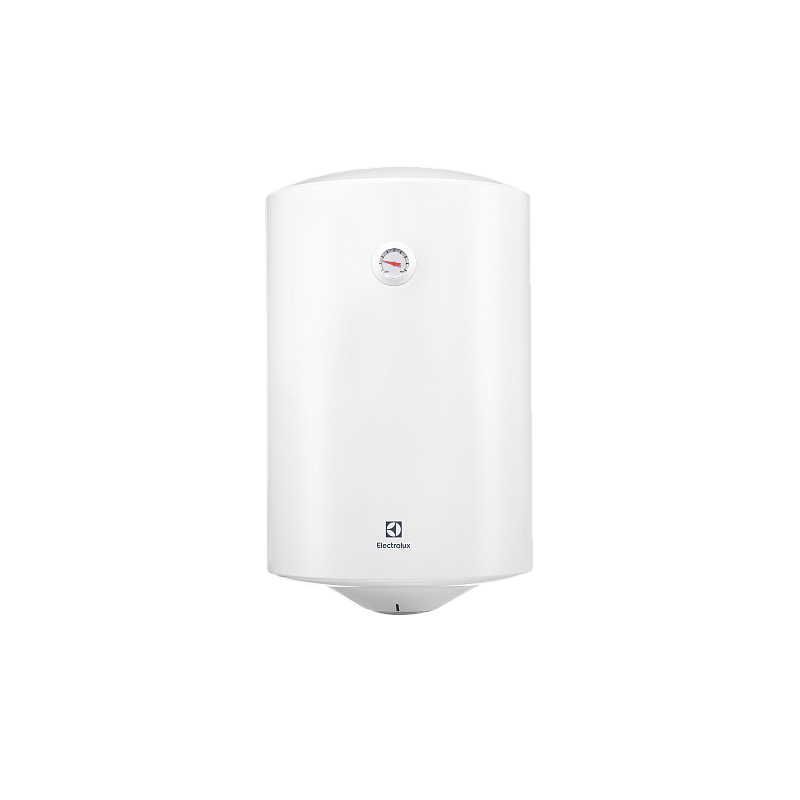

Electric water heater Electrolux EWH 80 QT EEC
The design of the device may slightly differ from that presented on the site.
-
SeriesQT EEC
-
Water heating time from 10°C to 75°C254 min
-
Nominal volume80 l
-
Max. power consumption1.5 kW
Dry heating elements
Mechanical control
Effective thermal insulation
Multi-level protection of inner tank
-
Water heating time from 10°C to 75°C254 min
-
Nominal volume80 l
-
Max. power consumption1.5 kW
Product documents
Main
- Tank material: Enamelled tank cover
- Inner coating of the tank: Enamel
- Outer body material: Metal
- Inner tank material: Enamelled steel
- Nominal volume: 80 l
- Case shape: Round
- Heating element type: Tubular electric heater (TEH)
- Series: QT EEC
- Case color: White
- Warranty period: 5 years for indoor capacity and 2 years for electrical components
- Country of origin: PRC
Performance
- Water heating time from 10°C to 75°C: 254 min
- Min. water temperature: 30 °С
- Max. water temperature: 75 °С
- Heating power levels: 1,50 kW
Indication
- Rotate the display: no
- Heating temperature display: no
- Display type: no
- Power on indication: yes
Mounting
- Inlet thread: 1/2 "
- Outlet thread: 1/2 "
- Max. power consumption: 1.5 kW
- Network cable: Yes (with plug)

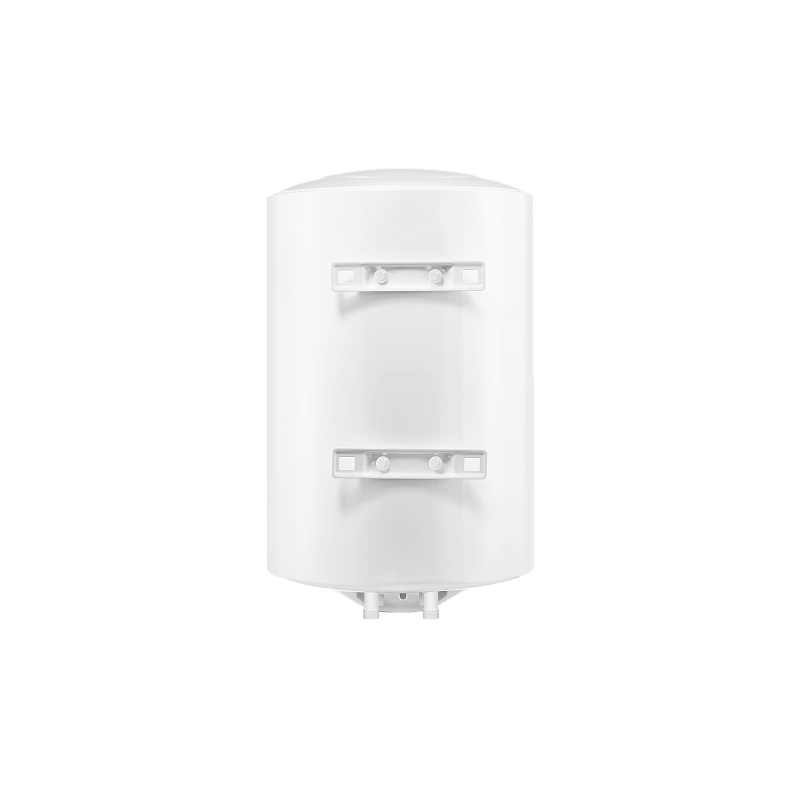

- Installation type (mounting): Indoor wall

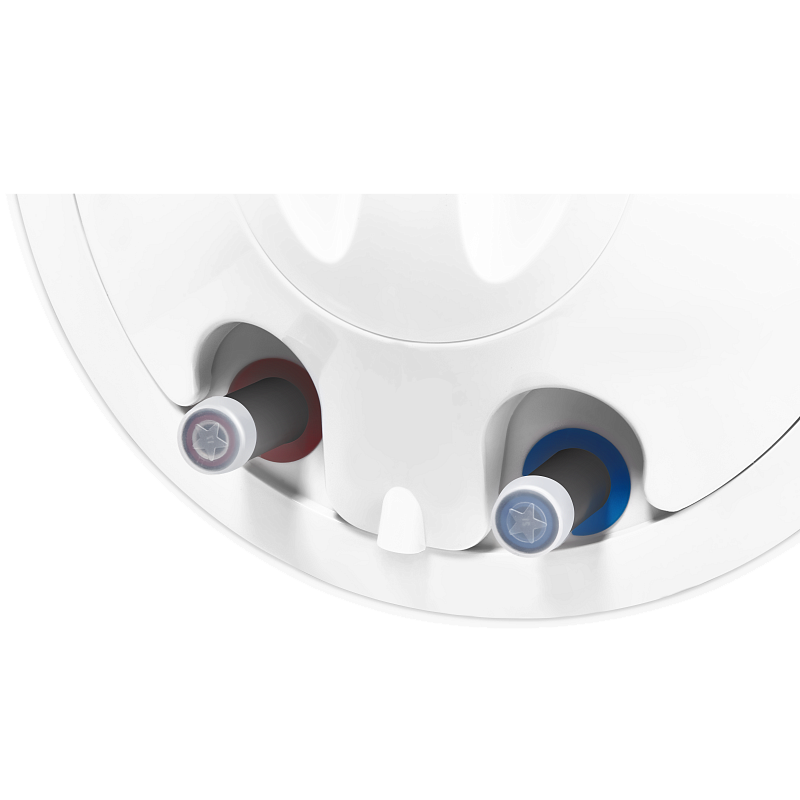

- Type of connection: Lower
Product weight and dimensions
- Product height: 0.727 m
- Product depth: 0.45 m
- Product width: 0.45 m
- Overall dimensions of the product (H*W*D): 0,727*0,45*0,45 m
- Product weight (net): 25.5 kg
- Product height: 72.7 cm
- Product width: 45 cm
- Product depth: 45 cm
Control

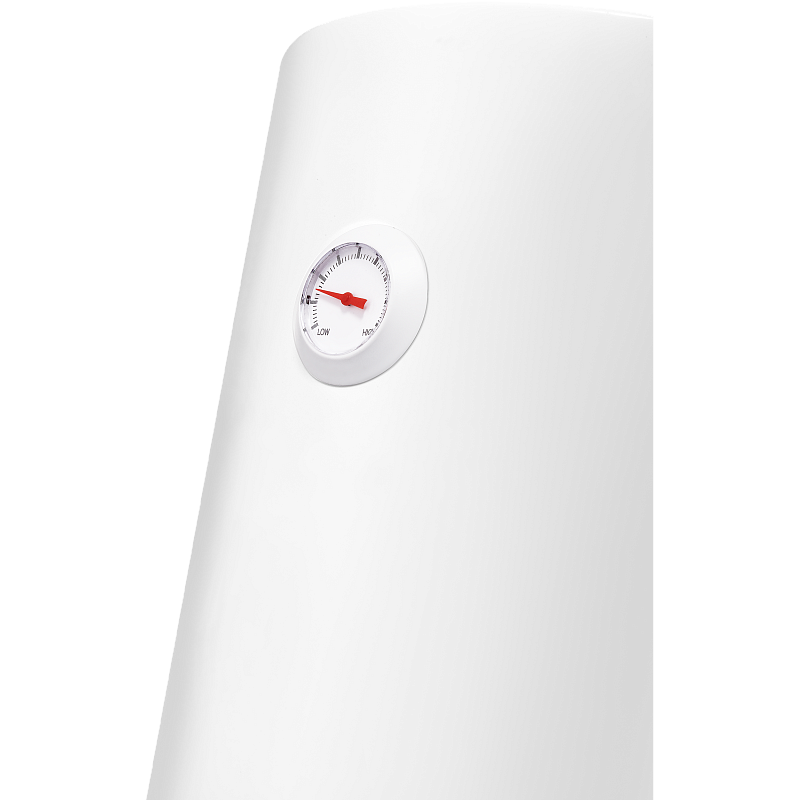

- Thermostat type: Mechanical
- Temperature control: Yes (mechanical regulator)
- Control type: Mechanical
- Temperature setting accuracy: Mechanical adjustment
Modes
- Number of heating modes: 1
Protection and safety
- Anti-calc: Magnesium anode
- Corrosion protection: Oversized magnesium anode
- Protection against switching on without water: no
- Pressure relief valve: yes
- Overheat protection: yes
- Fault self-diagnosis system: no
- Dust and moisture resistance class: IPX4
Ensemble
- Set of fasteners included: yes
Packaging weight and dimensions
- Product weight with packaging (gross): 27.65 kg
- Product packaging height: 46.5 cm
- Product packaging width: 50.5 cm
- Product packaging depth: 84.5 cm
Data sheet
-
Product features
-
SeriesQT EEC
-
Water heating time from 10°C to 75°C254 min
-
Nominal volume80 l
-
Max. power consumption1.5 kW
Dry heating elementsMechanical controlEffective thermal insulationMulti-level protection of inner tank -
-
Key characteristics
-
Water heating time from 10°C to 75°C254 min
-
Nominal volume80 l
-
Max. power consumption1.5 kW
-
-
Product documentsProduct documents
-
All characteristics
Main
- Tank material: Enamelled tank cover
- Inner coating of the tank: Enamel
- Outer body material: Metal
- Inner tank material: Enamelled steel
- Nominal volume: 80 l
- Case shape: Round
- Heating element type: Tubular electric heater (TEH)
- Series: QT EEC
- Case color: White
- Warranty period: 5 years for indoor capacity and 2 years for electrical components
- Country of origin: PRC
Performance
- Water heating time from 10°C to 75°C: 254 min
- Min. water temperature: 30 °С
- Max. water temperature: 75 °С
- Heating power levels: 1,50 kW
Indication
- Rotate the display: no
- Heating temperature display: no
- Display type: no
- Power on indication: yes
Mounting
- Inlet thread: 1/2 "
- Outlet thread: 1/2 "
- Max. power consumption: 1.5 kW
- Network cable: Yes (with plug)
- Installation type (mounting): Indoor wall
- Type of connection: Lower
Product weight and dimensions
- Product height: 0.727 m
- Product depth: 0.45 m
- Product width: 0.45 m
- Overall dimensions of the product (H*W*D): 0,727*0,45*0,45 m
- Product weight (net): 25.5 kg
- Product height: 72.7 cm
- Product width: 45 cm
- Product depth: 45 cm
Control
- Thermostat type: Mechanical
- Temperature control: Yes (mechanical regulator)
- Control type: Mechanical
- Temperature setting accuracy: Mechanical adjustment
Modes
- Number of heating modes: 1
Protection and safety
- Anti-calc: Magnesium anode
- Corrosion protection: Oversized magnesium anode
- Protection against switching on without water: no
- Pressure relief valve: yes
- Overheat protection: yes
- Fault self-diagnosis system: no
- Dust and moisture resistance class: IPX4
Ensemble
- Set of fasteners included: yes
Packaging weight and dimensions
- Product weight with packaging (gross): 27.65 kg
- Product packaging height: 46.5 cm
- Product packaging width: 50.5 cm
- Product packaging depth: 84.5 cm
Product information
Water heaters of the QT series, thanks to the classic round body, with a diameter of 34 cm, can be placed even in a small space.
Corrosion resistance is ensured by multi-level protection of all important structural elements of the Protect Tank: a finely dispersed enamel coating of the inner surfaces of the tank and an increased mass magnesium anode. The protection system — from overheating, from high hydraulic pressure and simple control make these devices a truly universal solution for the constant supply of hot water to the house.
Corrosion resistance is ensured by multi-level protection of all important structural elements of the Protect Tank: a finely dispersed enamel coating of the inner surfaces of the tank and an increased mass magnesium anode. The protection system — from overheating, from high hydraulic pressure and simple control make these devices a truly universal solution for the constant supply of hot water to the house.
