SeriesECH/AT
-
Heating element typeHEDGEHOG
-
Effective for premises up to30 m²
-
Case colorBlack
-
Warranty period5 years
-
Heating element typeHEDGEHOG
-
Effective for premises up to30 m²
-
Case colorBlack
-
Warranty period5 years
Main
- Heating element type: HEDGEHOG
- Case color: Black
- Series: ECH/AT
- Warranty period: 5 years
Consumer
- Freeze protection mode: no
- Application area: Household equipment (for home use)
- Effective for premises up to: 30 m²
Modes
- Number of heating modes: Infinitely variable power adjustment
Functions
- Saving settings in case of power outage: yes
Mounting
- Max. power consumption: 2 kW
- Installation type (mounting): Floor / Wall
- Network cable: Yes (with plug)
- Length of cable: 1.2 m
- Power supply voltage: 220 - 240 V
Product weight and dimensions
- Product height: 80 cm
- Product width: 42 cm
- Product depth: 11 cm
- Product weight (net): 4.06 kg
Technologies
- Inverter technology: yes
Control
- Integration into an inverter heating system: yes
- Individual programming: yes
- Thermostat type: Electronic
- Temperature control: Yes (electronic regulator)
- Control box: Built-in
- Control type: Inverter
- Control from a mobile application via Wi-Fi: yes
- Wi-Fi module: Built-in
- Shutdown timer: yes
- Temperature setting accuracy: 1,0 °С
Indication
- Heating temperature display: yes
- Digital display: yes
- Power on indication: yes
- Operation mode indication: yes
Protection and safety
- Emergency shutdown when tilted or overturned: no
- Dust and moisture resistance class: IP24
- Overheat protection: yes
Ensemble
- Floor installation kit: yes
- Wall mounting kit: yes
- Control panel included: no
Packaging weight and dimensions
- Product packaging height: 45.2 cm
- Product packaging width: 14.7 cm
- Product packaging depth: 84.7 cm
- Product weight with packaging (gross): 5.17 kg
Data sheet
-
Product features
-
SeriesECH/AT
-
Heating element typeHEDGEHOG
-
Effective for premises up to30 m²
-
Case colorBlack
-
Warranty period5 years
digital INVERTER technology
Wi-Fi Control
HEDGEHOG heating element
FLOW SCREEN technology -
-
Key characteristics
-
Heating element typeHEDGEHOG
-
Effective for premises up to30 m²
-
Case colorBlack
-
Warranty period5 years
-
-
Product documentsProduct documents
-
All characteristics
Main
- Heating element type: HEDGEHOG
- Case color: Black
- Series: ECH/AT
- Warranty period: 5 years
Consumer
- Freeze protection mode: no
- Application area: Household equipment (for home use)
- Effective for premises up to: 30 m²
Modes
- Number of heating modes: Infinitely variable power adjustment
Functions
- Saving settings in case of power outage: yes
Mounting
- Max. power consumption: 2 kW
- Installation type (mounting): Floor / Wall
- Network cable: Yes (with plug)
- Length of cable: 1.2 m
- Power supply voltage: 220 - 240 V
Product weight and dimensions
- Product height: 80 cm
- Product width: 42 cm
- Product depth: 11 cm
- Product weight (net): 4.06 kg
Technologies
- Inverter technology: yes
Control
- Integration into an inverter heating system: yes
- Individual programming: yes
- Thermostat type: Electronic
- Temperature control: Yes (electronic regulator)
- Control box: Built-in
- Control type: Inverter
- Control from a mobile application via Wi-Fi: yes
- Wi-Fi module: Built-in
- Shutdown timer: yes
- Temperature setting accuracy: 1,0 °С
Indication
- Heating temperature display: yes
- Digital display: yes
- Power on indication: yes
- Operation mode indication: yes
Protection and safety
- Emergency shutdown when tilted or overturned: no
- Dust and moisture resistance class: IP24
- Overheat protection: yes
Ensemble
- Floor installation kit: yes
- Wall mounting kit: yes
- Control panel included: no
Packaging weight and dimensions
- Product packaging height: 45.2 cm
- Product packaging width: 14.7 cm
- Product packaging depth: 84.7 cm
- Product weight with packaging (gross): 5.17 kg
Product information

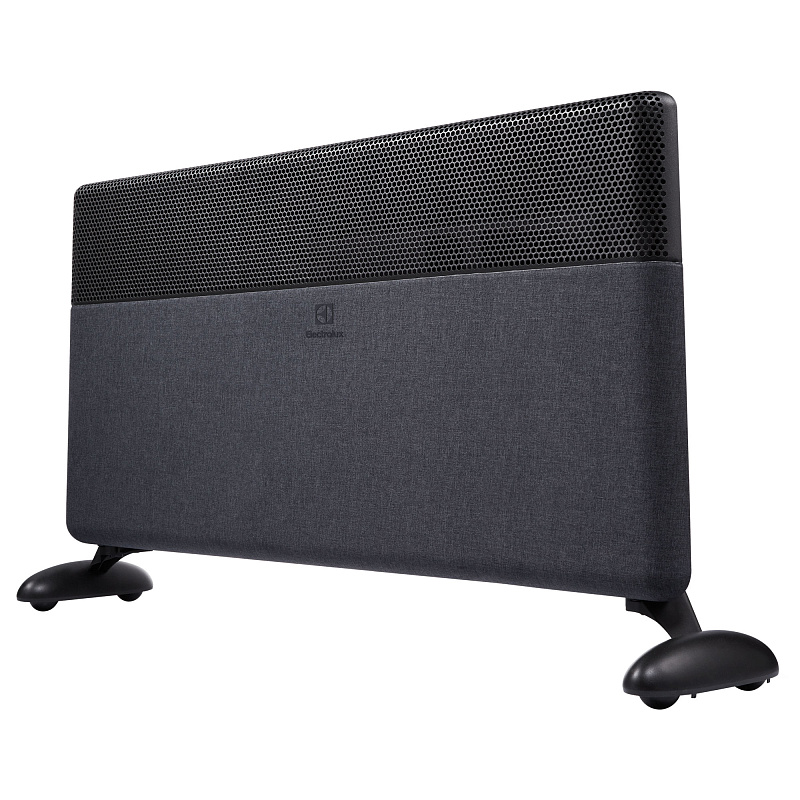

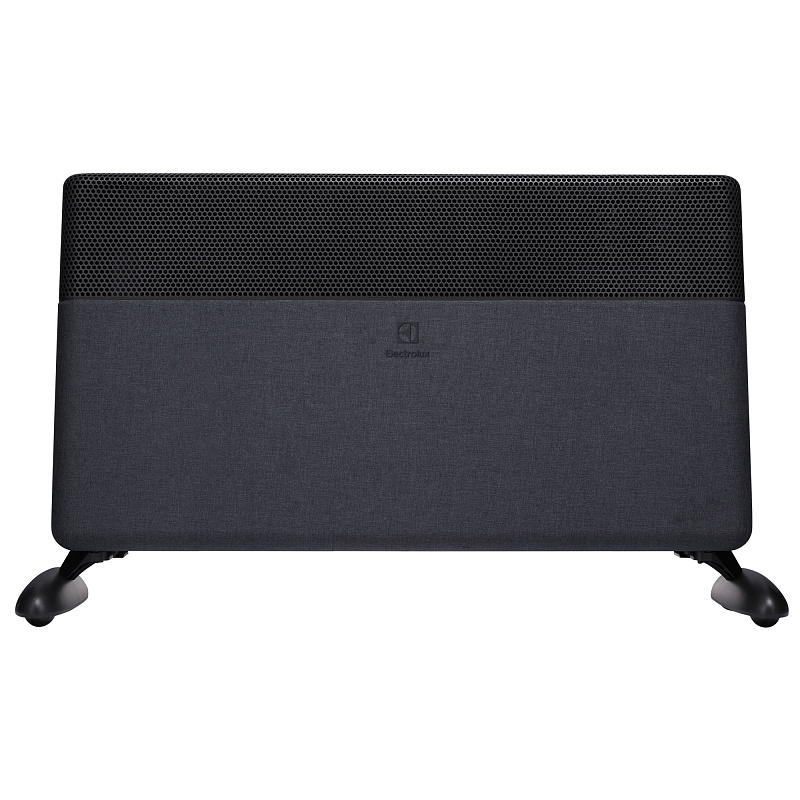

The original coating with flame-retardant Space Suit fabric distributes heat more evenly over the front panel and is easily cleaned from dirt. The fabric covering and smooth shapes will help to organically fit the device into interiors in modern, neoclassical and Scandinavian styles.
The heating module is equipped with a modern Hedgehog heating element, which reaches the operating temperature 20% faster and has a super compact size due to the increased heat transfer area. 15% lower element and case temperature ensures soft and comfortable warmth. Hedgehog heating element service life is 25 years!
Larger air intake grid, perfect convection chamber, Flowscreen and Intake PRO technology create the perfect convection flow.

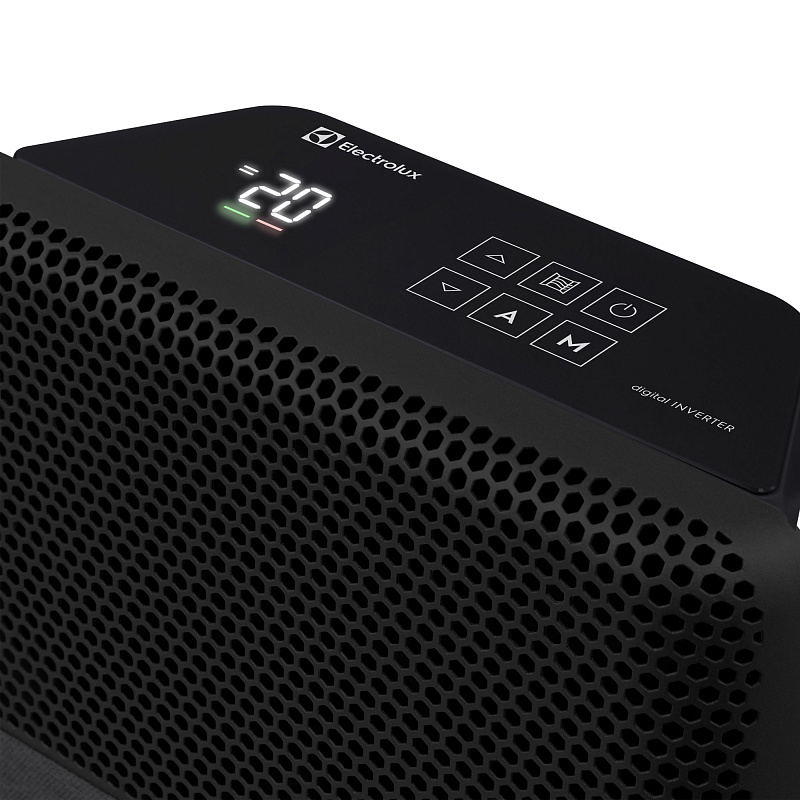

The device is equipped with a digital INVERTER inverter control unit, which consumes 3 times less electricity. This fact is confirmed by TUV NORD* laboratory tests.
The patented technology is presented in the digital INVERTER unit. This innovative power supply circuit of the device smoothly changes the power of the heating element depending on the difference between the actual and the set temperature in the premise. If necessary, the convector quickly brings the temperature up to the one set by the user. After - it works only to maintain it, reducing energy consumption.
The convector is equipped with brackets and chassis included.
* compared to a heating module of the same power, equipped with a mechanical control unit.
You may like
Electric convector Electrolux ECH/AT-1500 3AI-W EEC
ECH/AT convector is the new leader in the category: everything is thought out to the smallest detail...
Electric convector Electrolux ECH/AT-2000 3AE EEC
ECH/AT convector is the new leader in the category: everything is thought out to the smallest detail...
Electric convector Electrolux ECH/AT-2001 3AI-W MG EEC
The original coating with flame-retardant Space Suit fabric distributes heat more evenly over the fr...

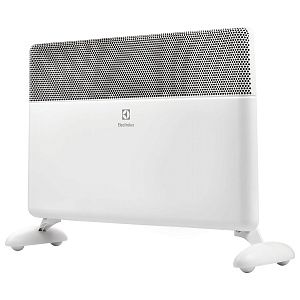

Electric convector Electrolux ECH/AT-2000 3AI-W EEC
