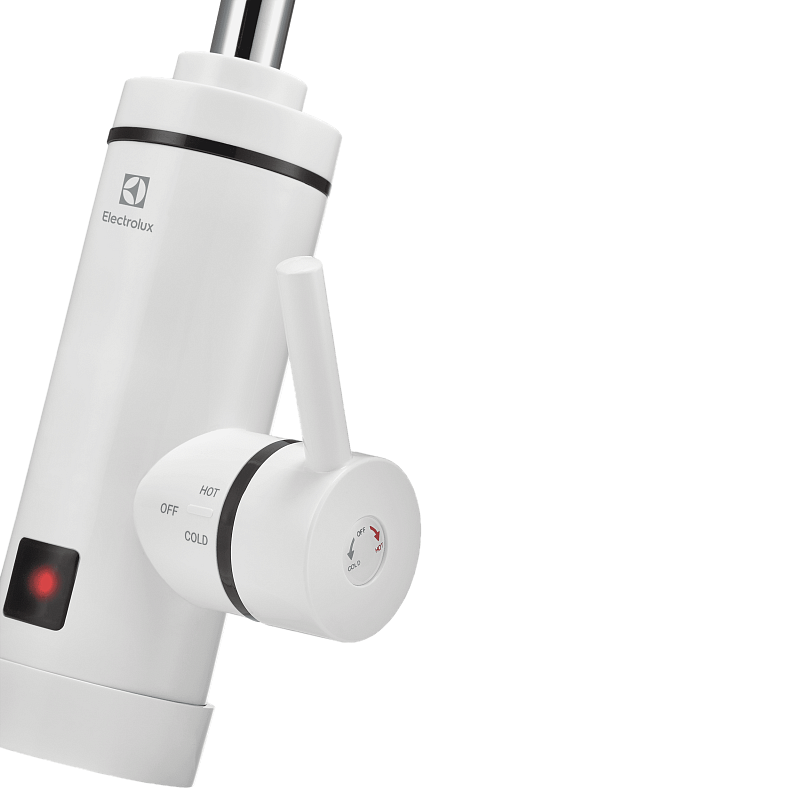

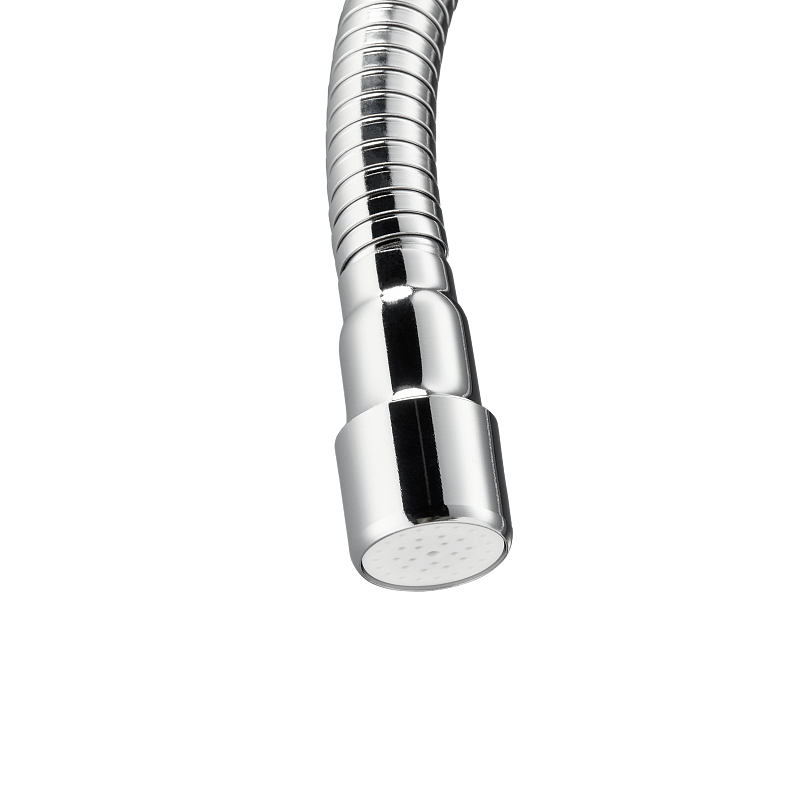

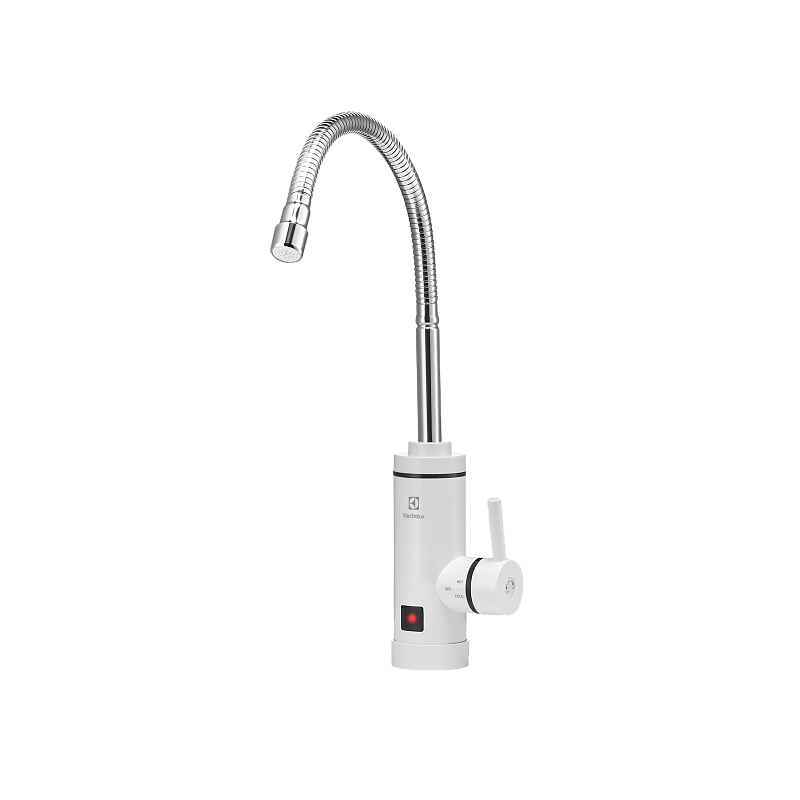

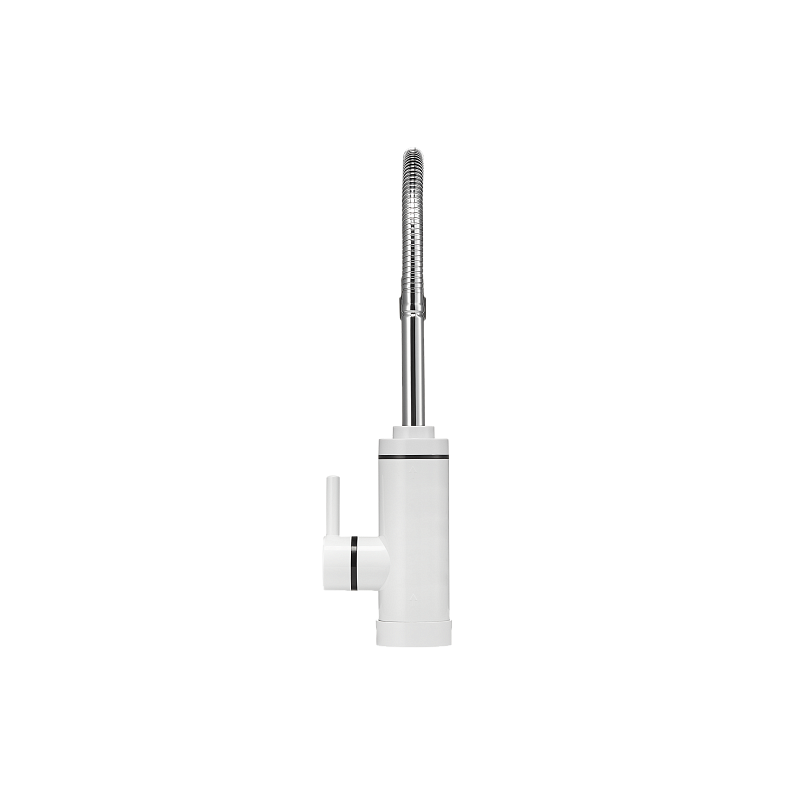

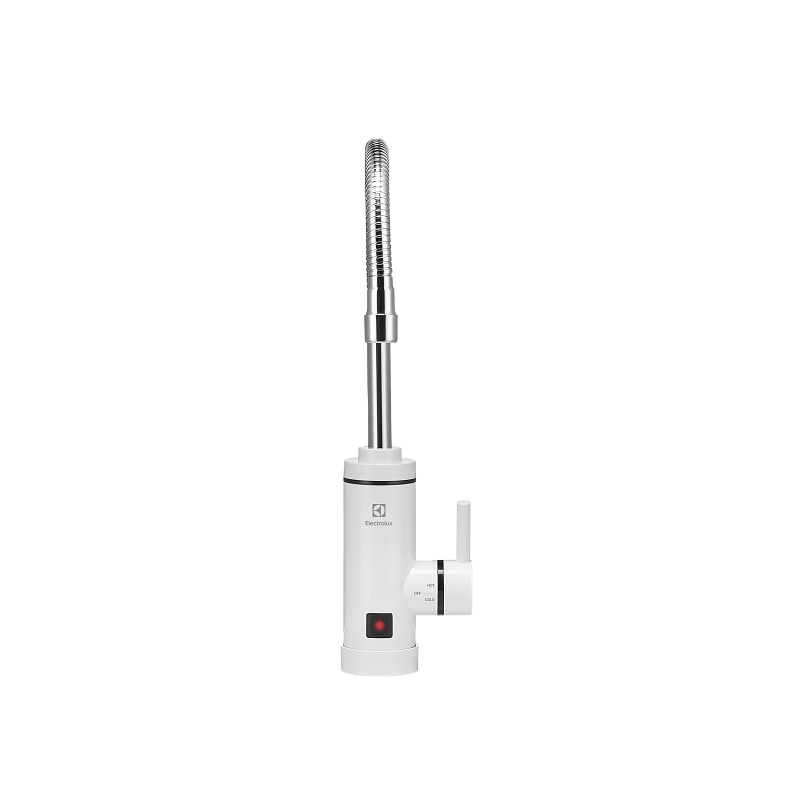

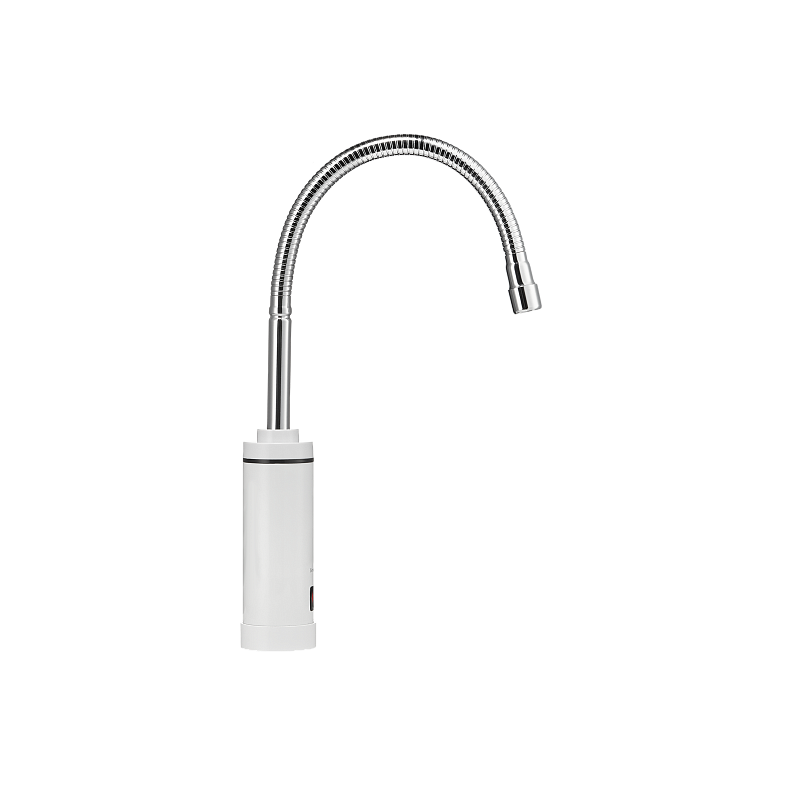

Instantaneous water heater Electrolux Smtp EEC

Data sheet

• Product features
  • Series
    Smtp
  • Max. performance l/min
    1.3 l/min
  • Water heating (delta temperature)
    30 - 60 °С
  • Overheat protection
    yes
  • Case color
    White
  • Warranty period
    2 years



  Easy installation



  Stylish design



  Contact plates of increased efficiency



  Protection from water overfill
• Key characteristics
  • Max. performance l/min
    1.3 l/min
  • Water heating (delta temperature)
    30 - 60 °С
  • Overheat protection
    yes
  • Case color
    White
  • Warranty period
    2 years
• Product documents
  Product documents

  • PDF Download PDF
• All characteristics

  Main

  • Water heater version: Sink faucit
  • Outer body material: Plastic
  • Heating element material: Steel
  • Heating element type: Tubular electric heater (TEH)
  • Case color: White
  • Country of origin: PRC
  • Series: Smtp
  • Warranty period: 2 years

  Control

  • Temperature control: Yes (mechanical regulator)
  • Control type: Mechanical
  • Temperature setting accuracy: Mechanical adjustment

  Modes

  • Number of heating modes: 1

  Protection and safety

  • Protection against switching on without water: yes
  • RCD (residual current device): no
  • Overheat protection: yes
  • Fault self-diagnosis system: no
  • Dust and moisture resistance class: IPX4

  Ensemble

  • Fittings included: no
  • Set of fasteners included: yes

  Packaging weight and dimensions

  • Product weight with packaging (gross): 1.27 kg
  • Product packaging height: 25 cm
  • Product packaging width: 10.8 cm
  • Product packaging depth: 24.8 cm

  Consumer

  • Application area: Household equipment (for home use)

  Performance

  • Max. performance l/min: 1.3 l/min
  • Water heating (delta temperature): 30 - 60 °С
  • Max. water temperature: 60 °С
  • Heating power levels: 3,00 kW

  Indication

  • Heating temperature display: no
  • Digital display: no
  • Display type: no

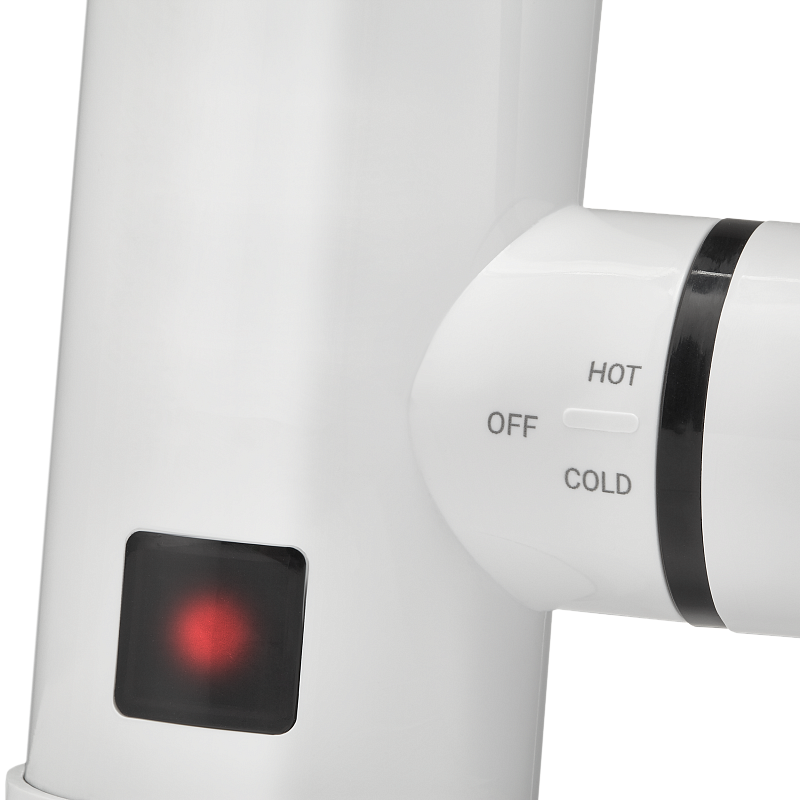

  • Power on indication: yes

  Mounting

  • Min. working pressure: 0.4 bar
  • Power cable cross section: >=2,5 mm²
  • Type of connection: Upper
  • Inlet thread: 1 1/2 "
  • Outlet thread: 1/2 "
  • Max. power consumption: 3 kW
  • Max. working pressure: 6 bar
  • Installation type (mounting): On the sink/countertop
  • Network cable: Yes (with plug)

  Product weight and dimensions

  • Product height: 0.49 m
  • Product depth: 0.6 m
  • Product width: 0.1 m
  • Overall dimensions of the product (H*W*D): 0,49*0,1*0,6 m
  • Product weight (net): 0.097 kg
  • Product height: 49 cm
  • Product width: 10 cm
  • Product depth: 60 cm
