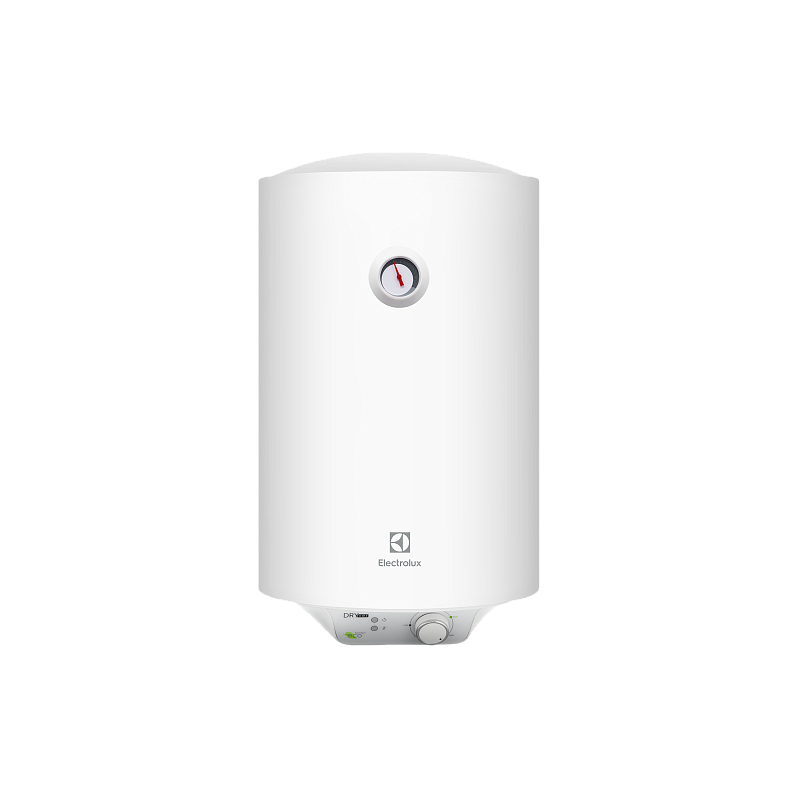

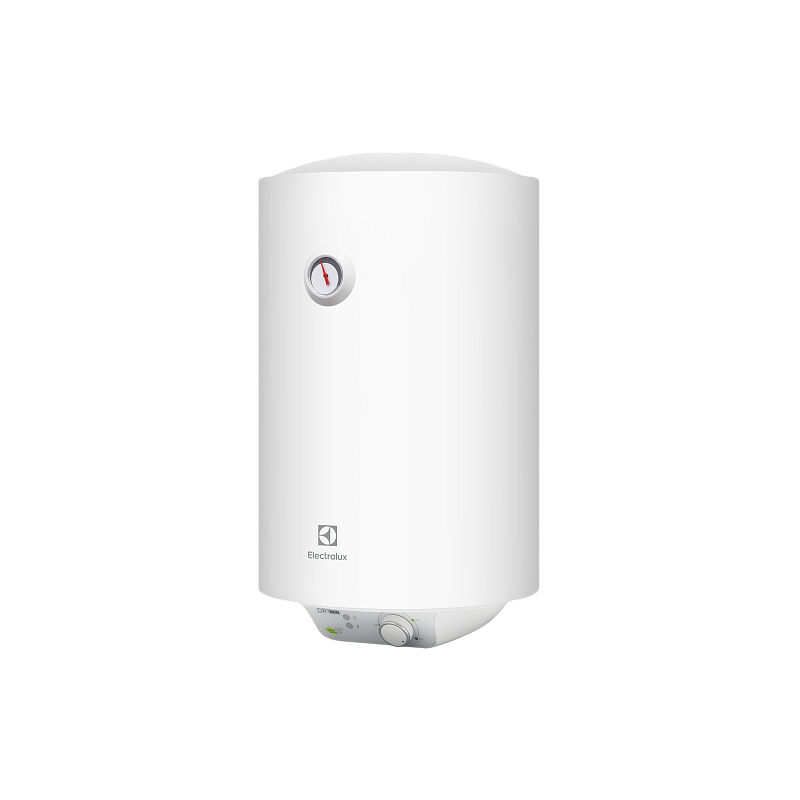

Electric water heater Electrolux EWH 30 DR EEC

Data sheet

• Product features
  • Series
    DR EEC
  • Nominal volume
    30 l
  • Water heating time from 10°C to 75°C
    85 min
  • Max. power consumption
    1.5 kW
  • Case color
    White



  Dry heating elements



  Dielectric adapters



  Multi-level protection of inner tank



  Universal installation
• Key characteristics
  • Nominal volume
    30 l
  • Water heating time from 10°C to 75°C
    85 min
  • Max. power consumption
    1.5 kW
  • Case color
    White
• Product documents
  Product documents

  • PDF Download PDF
• All characteristics

  Main

  • Inner coating of the tank: Enamel
  • Outer body material: Metal+Plastic
  • Inner tank material: Enamelled steel
  • Heating element material: Steel
  • Nominal volume: 30 l
  • Heating element type: Dry tubular electric heater
  • Case shape: Round
  • Series: DR EEC
  • Inner tank volume: 27 l
  • Case color: White
  • Warranty period: 5 years for indoor capacity and 2 years for electrical components

  Technologies

  • USB connector for Wi-Fi module: no
  • Audio speaker: no
  • Inverter technology: no
  • Audio speaker connector: no

  Performance

  • Water heating time from 10°C to 75°C: 85 min
  • Max. water temperature: 75 °С
  • Min. water temperature: 30 °С
  • Heating power levels: 1,00 kW

  Indication

  • Heating power indication: no
  • Rotate the display: no
  • Current temperature indication: yes
  • Heating temperature display: no
  • Display type: no
  • Power on indication: yes
  • Display backlight: no

  Mounting

  • Insulation thickness: 20 mm

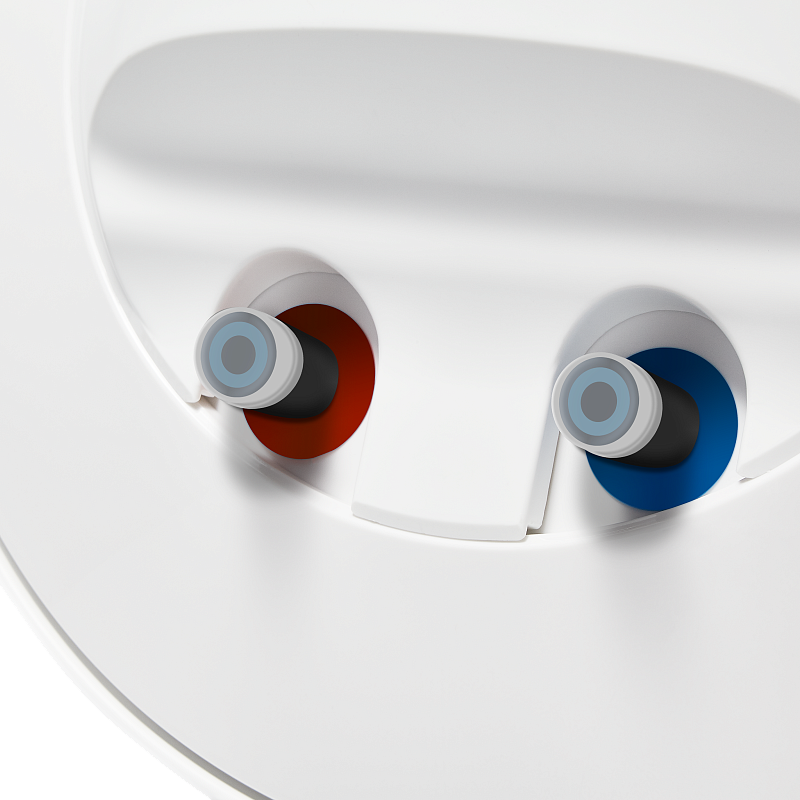

  • Type of connection: Lower
  • Inlet thread: 1/2 inch
  • Outlet thread: 1/2 inch
  • Installation type (mounting): Indoor wall
  • Max. power consumption: 1.5 kW
  • Network cable: Yes (with plug)

  Product weight and dimensions

  • Product weight (net): 14 kg
  • Product height: 61.2 cm
  • Product width: 35 cm
  • Product depth: 35 cm

  Additional

  • Warranty document: Warranty card

  Control

  • Thermostat type: Mechanical
  • Temperature control: yes
  • Wi-Fi module: no
  • Temperature setting accuracy: Mechanical adjustment
  • Control type: Mechanical

  Modes

  • Built-in clock: no
  • Demo mode: no
  • Number of heating modes: 1

  Protection and safety

  • Anti-calc: Oversized magnesium anode
  • Corrosion protection: Oversized magnesium anode
  • Protection of control buttons from children: no
  • Protection against switching on without water: no
  • Pressure relief valve: yes
  • Fault self-diagnosis system: no
  • Overheat protection: yes
  • Dust and moisture resistance class: IPX4

  Ensemble

  • Dielectric adapters: As a set
  • Check valve: As a set
  • Set of fasteners included: yes

  Packaging weight and dimensions

  • Product weight with packaging (gross): 16.1 kg
  • Product packaging height: 41 cm
  • Product packaging width: 41 cm
  • Product packaging depth: 66 cm
