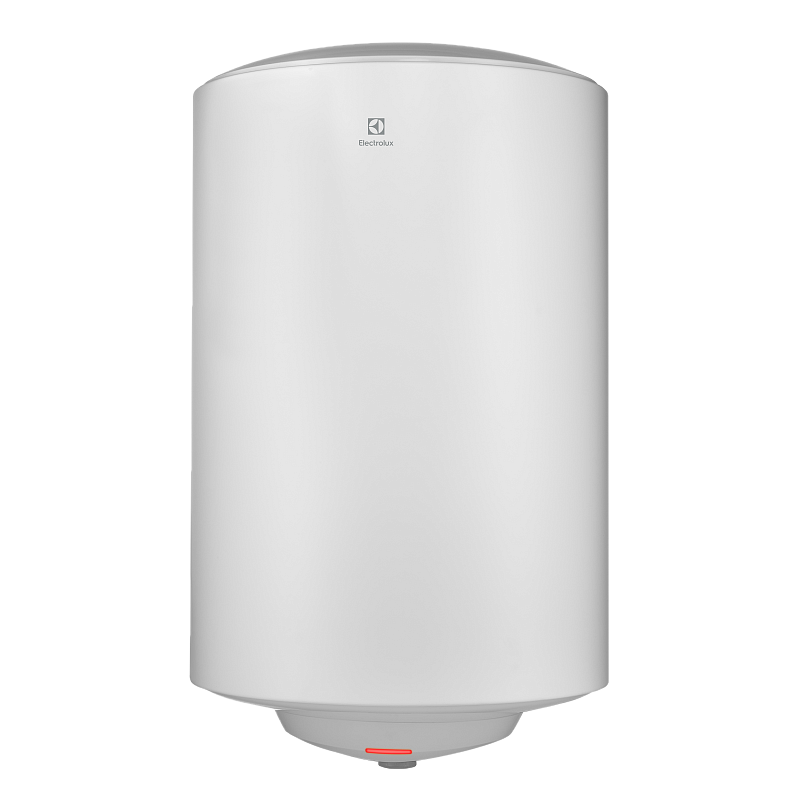

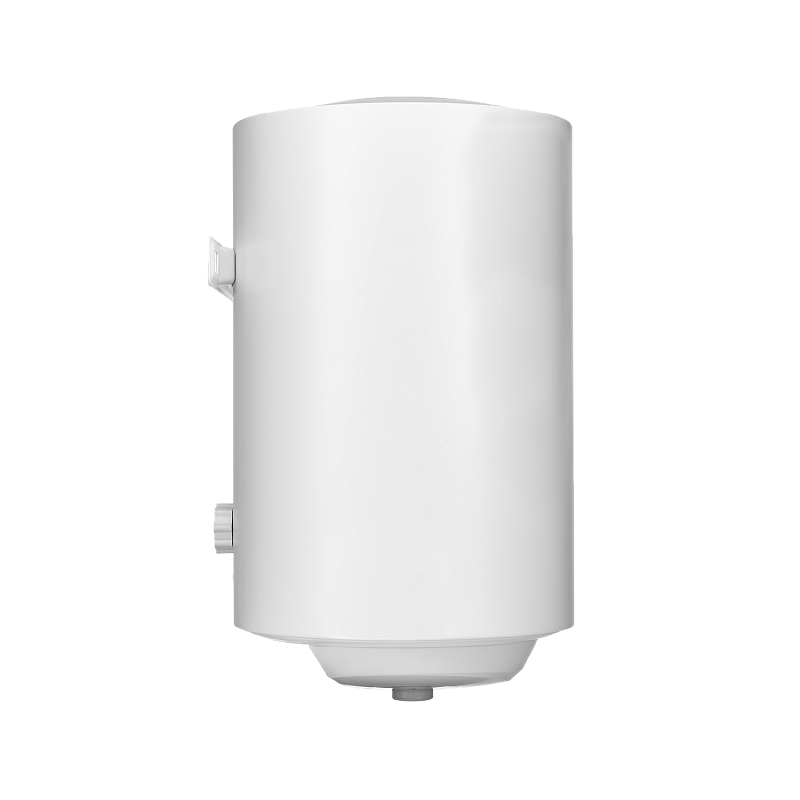

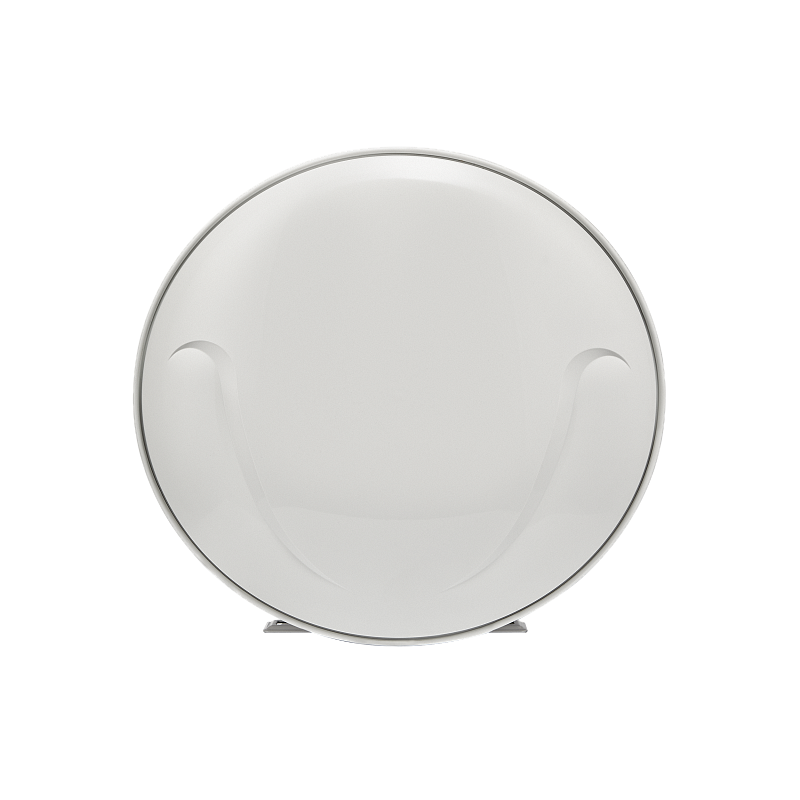

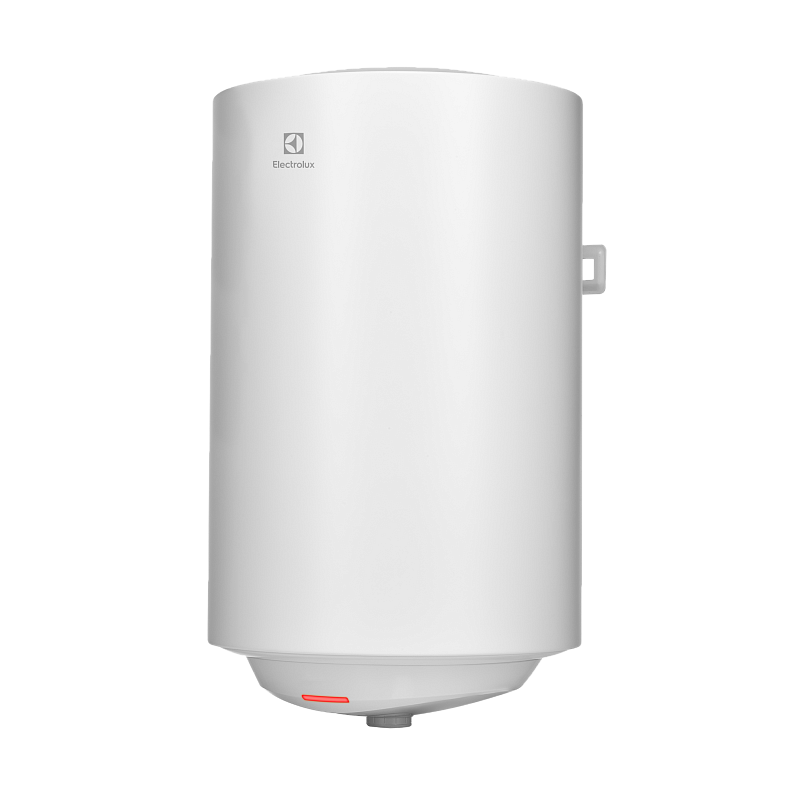

Electric water heater Electrolux EWH 30 LRC EEC

Data sheet

• Product features
  • Series
    LRC EEC
  • Nominal volume
    30 l
  • Water heating time from 10°C to 75°C
    96 min
  • Max. power consumption
    1.5 kW
  • Case color
    White



  Dry heating elements



  Mechanical control



  Effective thermal insulation



  Multi-level protection of inner tank
• Key characteristics
  • Nominal volume
    30 l
  • Water heating time from 10°C to 75°C
    96 min
  • Max. power consumption
    1.5 kW
  • Case color
    White
• Product documents
  Product documents

  • PDF Download PDF
• All characteristics

  Main

  • Inner coating of the tank: Enamel
  • Outer body material: Metal+Plastic
  • Inner tank material: Enamelled steel
  • Heating element material: Copper
  • Nominal volume: 30 l
  • Heating element type: Tubular electric heater (TEH)
  • Case shape: Round
  • Series: LRC EEC
  • Case color: White
  • Warranty period: 5 years for indoor capacity and 2 years for electrical components

  Technologies

  • USB connector for Wi-Fi module: no
  • Audio speaker: no
  • Inverter technology: no
  • Audio speaker connector: no

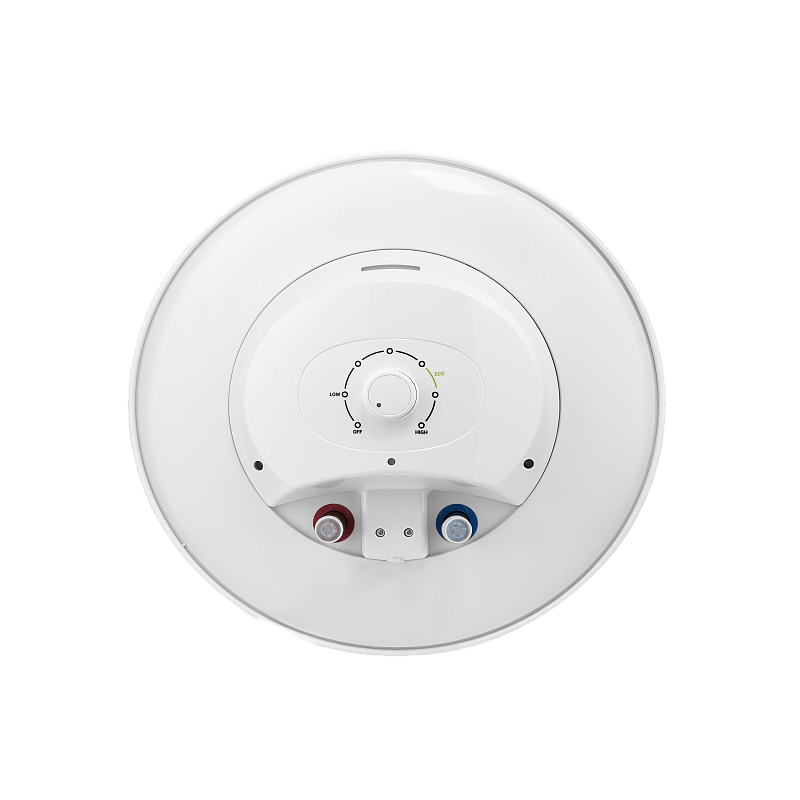

  Control

  • Control type: Mechanical
  • Wi-Fi module: no
  • Thermostat type: Mechanical
  • Temperature control: Yes (mechanical regulator)
  • Temperature setting accuracy: Mechanical adjustment

  Modes

  • Built-in clock: no
  • Demo mode: no
  • Number of heating modes: 2
  • Smart Memory mode: no

  Functions

  • "Fast heating" function: no

  Mounting

  • Max. power consumption: 1.5 kW
  • Outlet thread: 1/2 inch
  • Insulation thickness: 20 mm
  • Network cable: Yes (with plug)

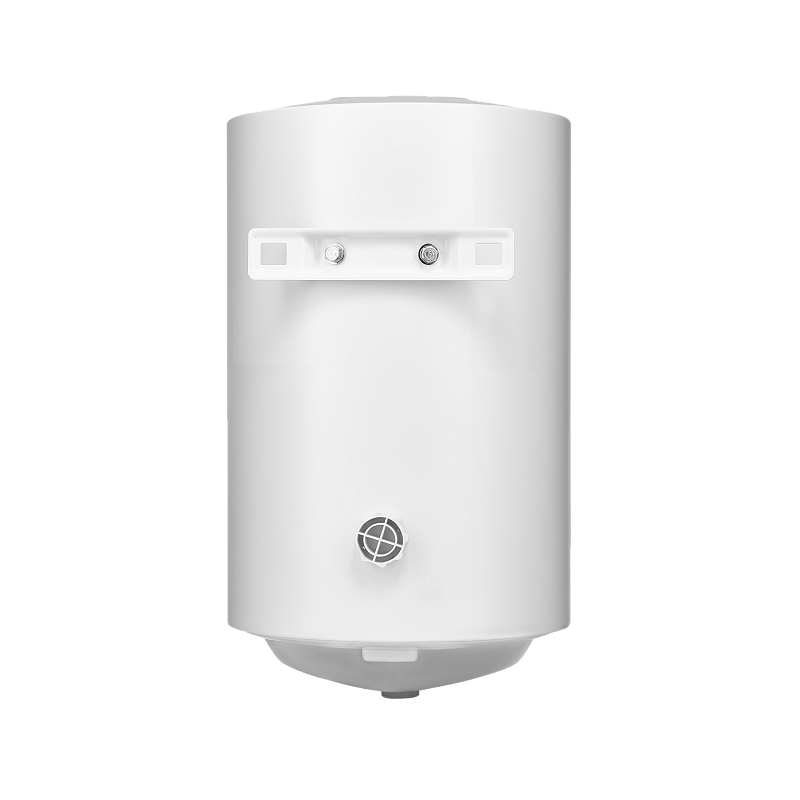

  • Installation type (mounting): Wall-mounted vertical
  • Inlet thread: 1/2 inch
  • Type of connection: Lower

  Product weight and dimensions

  • Product weight (net): 14.8 kg
  • Product height: 57.8 cm
  • Product width: 34 cm
  • Product depth: 35.8 cm

  Additional

  • Warranty document: Warranty card

  Consumer

  • Thermometer on the body: no

  Performance

  • Water heating time from 10°C to 75°C: 96 min
  • Min. water temperature: 30 °С
  • Heating power levels: 1,50 kW
  • Max. water temperature: 75 °С

  Indication

  • Display type: no
  • Display backlight: no
  • Power on indication: yes
  • Heating power indication: no
  • Current temperature indication: no
  • Heating temperature display: yes
  • Rotate the display: no
  • Display brightness control: no

  Protection and safety

  • Anti-calc: Oversized magnesium anode
  • Corrosion protection: Oversized magnesium anode
  • Protection against switching on without water: no
  • Overheat protection: yes
  • Protection of control buttons from children: no
  • Pressure relief valve: yes
  • RCD (residual current device): add. option
  • Dust and moisture resistance class: IPX4
  • Fault self-diagnosis system: no

  Ensemble

  • Dielectric adapters: no
  • Set of fasteners included: no
  • Check valve: As a set

  Packaging weight and dimensions

  • Product weight with packaging (gross): 16.4 kg
  • Product packaging height: 37 cm
  • Product packaging width: 40.5 cm
  • Product packaging depth: 64 cm
