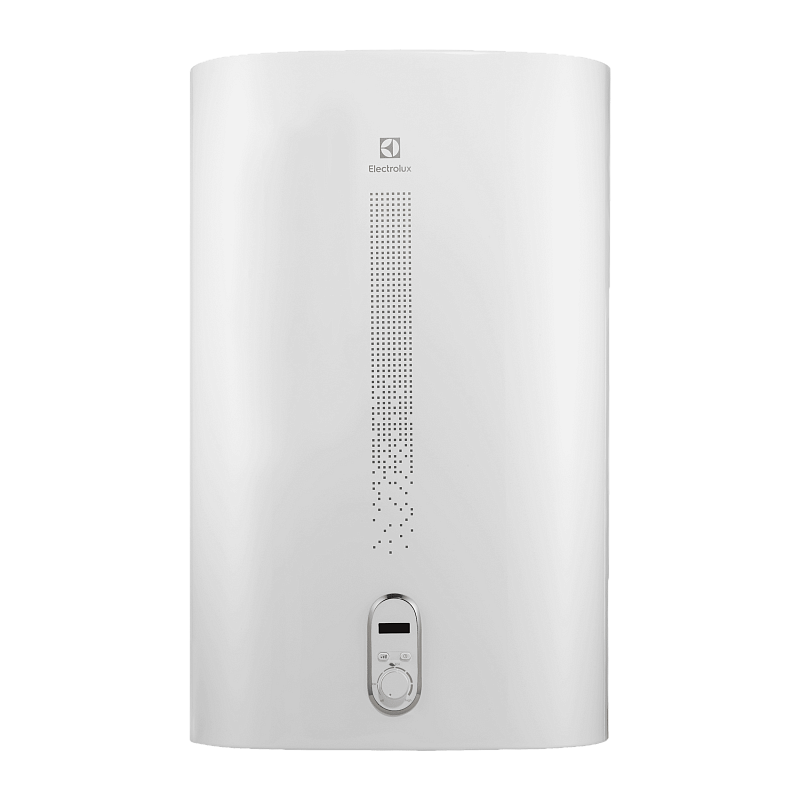

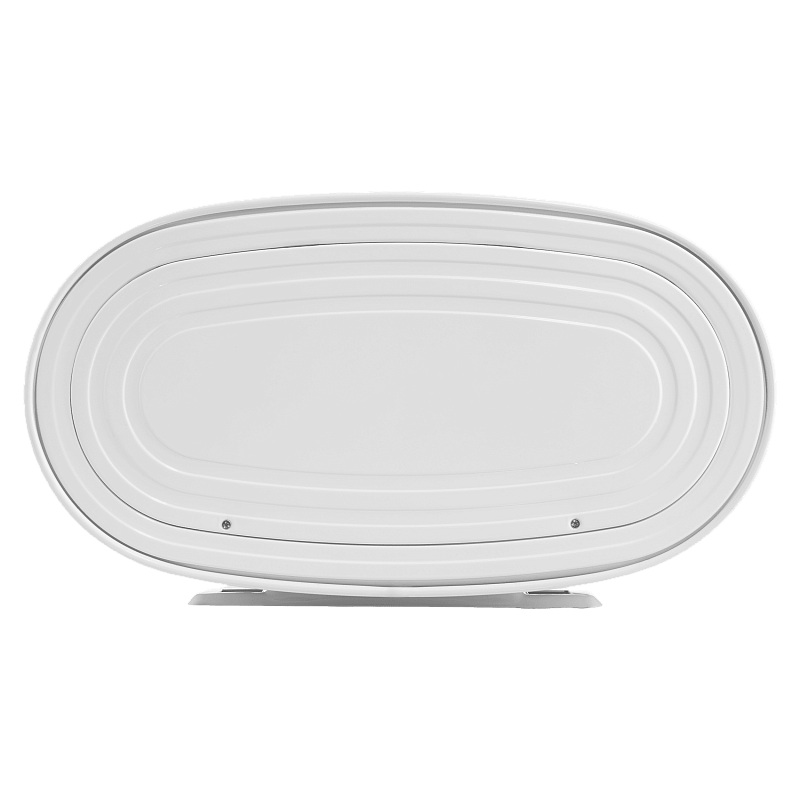

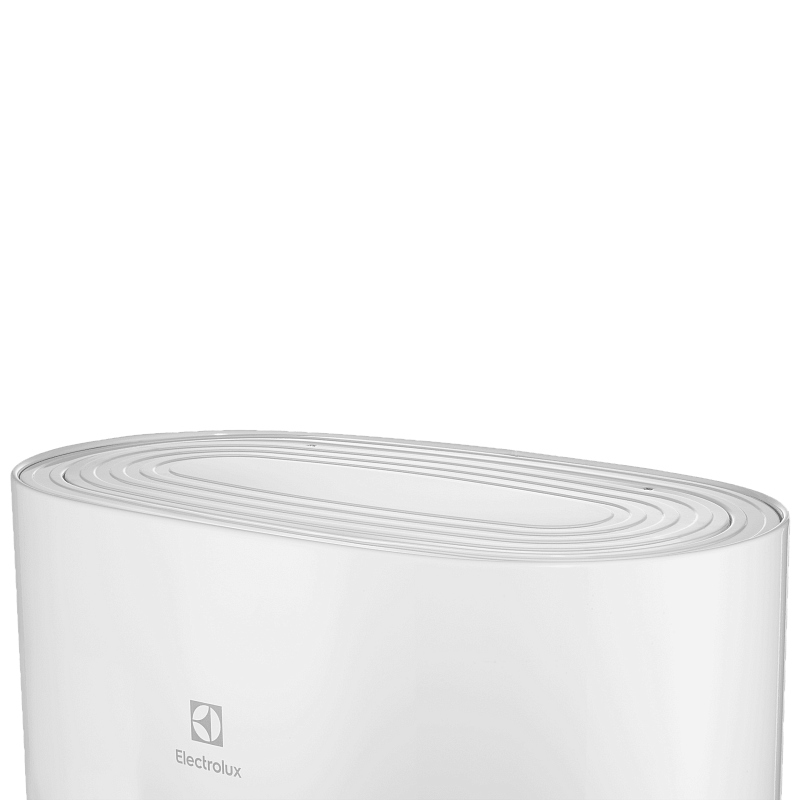

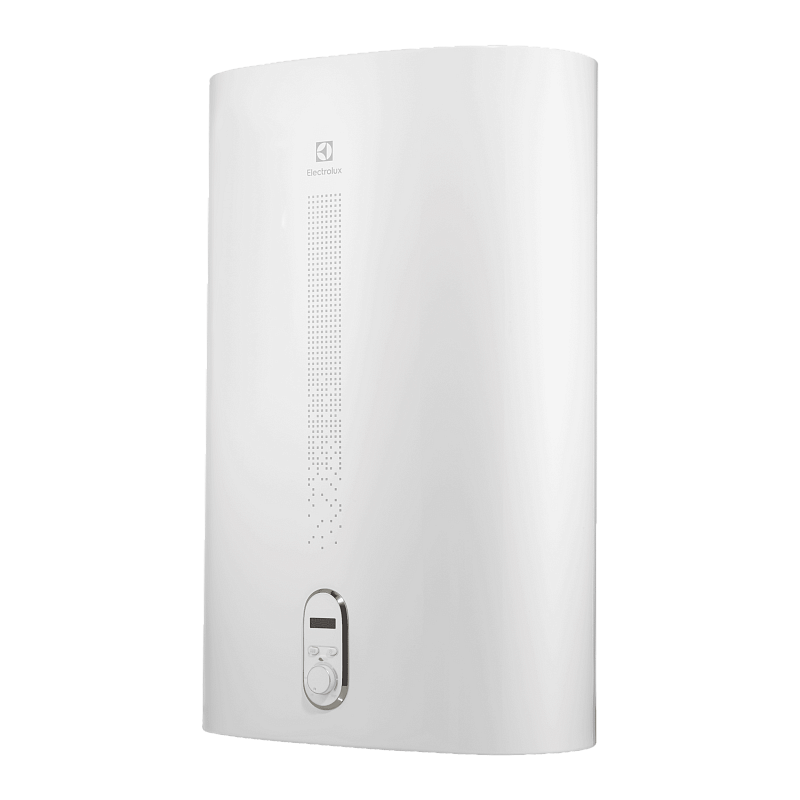

Electric water heater Electrolux EWH 100 GLD EEC

Data sheet

• Product features
  • Series
    GLD EEC
  • Nominal volume
    100 l
  • Control from a mobile application via Wi-Fi
    no
  • A system of "dry" heating elements (Tubular electric heater (TEH))
    yes
  • Number of heating modes
    3
  • Control type
    Mechanical



  Dry heating elements



  Timer of water heat



  Bacteria Stop system



  No-Frost mode
• Key characteristics
  • Nominal volume
    100 l
  • Control from a mobile application via Wi-Fi
    no
  • A system of "dry" heating elements (Tubular electric heater (TEH))
    yes
  • Number of heating modes
    3
  • Control type
    Mechanical
• Product documents
  Product documents

  • PDF Download PDF
  • PDF Download PDF
• All characteristics

  Main

  • Inner coating of the tank: Enamel
  • Number of tanks: 2
  • Number of heating elements: 1
  • Inner tank volume: 80 l
  • Heating element type: Dry tubular electric heater
  • Outer body material: Metal
  • Inner tank material: Enamelled steel
  • Heating element material: Steel
  • Nominal volume: 100 l
  • Case shape: Rectangular
  • Series: GLD EEC
  • Case color: White
  • Warranty period: 5 years for indoor capacity and 2 years for electrical components
  • Country of origin: PRC

  Technologies

  • USB connector for Wi-Fi module: no
  • Audio speaker: no
  • Inverter technology: no
  • Audio speaker connector: no
  • A system of "dry" heating elements (Tubular electric heater (TEH)): yes

  Control

  • Thermostat type: Electronic
  • Temperature control: yes
  • Control type: Mechanical
  • Control from a mobile application via Wi-Fi: no
  • Wi-Fi module: no
  • Temperature setting accuracy: Mechanical adjustment

  Modes

  • Built-in clock: no
  • Demo mode: no
  • Smart Memory mode: no
  • ECO mode: yes
  • Anti-freeze mode: yes
  • Number of heating modes: 3

  Functions

  • Number of timers: 1
  • "Fast heating" function: yes

  Mounting

  • Min. working pressure: 0,8 bar
  • Inlet thread: 1/2 inch
  • Outlet thread: 1/2 inch
  • Insulation thickness: 18 mm
  • Max. working pressure: 6 bar
  • Type of connection: Side/Lower
  • Layout option: Vertical/Horizontal

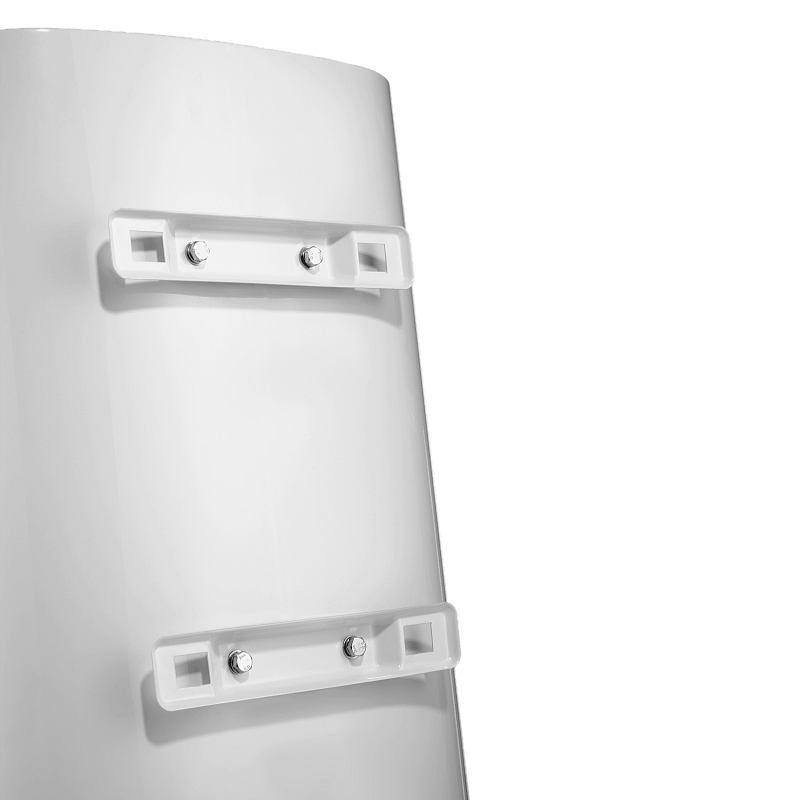

  • Installation type (mounting): Wall
  • Max. power consumption: 2 kW
  • Power supply voltage: 230 V
  • Network cable: Yes (with plug)

  Product weight and dimensions

  • Product weight (net): 32.4 kg
  • Product height: 107.5 cm
  • Product width: 55.5 cm
  • Product depth: 35 cm

  Additional

  • Warranty document: Warranty card

  Consumer

  • Estimated number of people for taking a shower (at average consumption): 4
  • Thermometer on the body: no
  • Application area: Household equipment (for home use)

  Performance

  • Water heating time from 10°C to 75°C: 192 min
  • Min. water temperature: 35 °С
  • Max. water temperature: 75 °С
  • Heating power levels: 2,00 kW

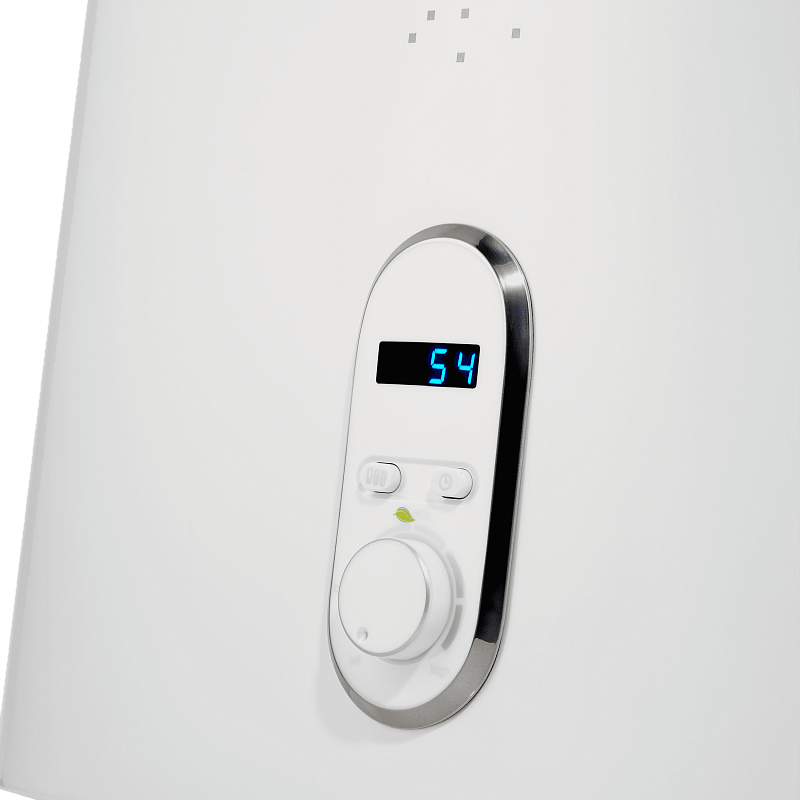

  Indication

  • Heating power indication: yes
  • Rotate the display: no
  • Display brightness control: no
  • Current temperature indication: yes
  • Display type: Luminous numerals
  • Heating temperature display: yes
  • Power on indication: yes
  • Digital display: yes
  • Display backlight: yes

  Protection and safety

  • Anti-calc: Oversized magnesium anode
  • Protection of control buttons from children: no
  • Pressure relief valve: yes
  • Corrosion protection: Oversized magnesium anode
  • Protection against switching on without water: no
  • RCD (residual current device): yes
  • Overheat protection: yes
  • Dust and moisture resistance class: IPX4
  • Fault self-diagnosis system: no

  Ensemble

  • Dielectric adapters: no
  • Check valve: As a set
  • Set of fasteners included: yes

  Packaging weight and dimensions

  • Product packaging height: 62.5 cm
  • Product packaging width: 113.5 cm
  • Product packaging depth: 37 cm
  • Product weight with packaging (gross): 32.4 kg
