Electric convector Electrolux ECH/AT-2000 3AI-W EEC

Data sheet

• Product features
  • Series
    AT
  • Heating element type
    HEDGEHOG
  • Effective for premises up to
    25 m²
  • Case color
    White
  • Warranty period
    5 years



  digital INVERTER technology



  Wi-Fi Control



  HEDGEHOG heating element



  Universal installation
• Key characteristics
  • Heating element type
    HEDGEHOG
  • Effective for premises up to
    25 m²
  • Case color
    White
  • Warranty period
    5 years
• Product documents
  Product documents

  • PDF Download PDF
  • PDF Download PDF
  • PDF Download PDF
• All characteristics

  Main

  • Heating element type: HEDGEHOG
  • Series: AT
  • Case color: White
  • Warranty period: 5 years
  • Country of origin: PRC

  Consumer

  • Freeze protection mode: no
  • Effective for premises up to: 25 m²
  • Application area: Household equipment (for home use)

  Modes

  • Number of heating modes: 5

  Functions

  • Saving settings in case of power outage: yes

  Mounting

  • Max. power consumption: 2 kW
  • Network cable: Yes (with plug)
  • Installation type (mounting): Indoor wall
  • Power supply voltage: 220 - 240 V
  • Length of cable: 1.2 m

  Product weight and dimensions

  • Product height: 0.42 m
  • Product depth: 0.11 m
  • Product width: 0.64 m
  • Overall dimensions of the product (H*W*D): 0,42*0,64*0,11 m
  • Product weight (net): 3.56 kg
  • Product height: 42 cm
  • Product width: 64 cm
  • Product depth: 11 cm

  Technologies

  • Inverter technology: yes

  Control

  • Integration into an inverter heating system: yes
  • Individual programming: yes
  • Control box: Built-in
  • Temperature control: yes
  • Temperature setting accuracy: 0,1 °С
  • Control type: Inverter
  • Control from a mobile application via Wi-Fi: yes*
    *Attention! Convectors equipped with a WiFi module are recommended to connect to your smart phone using the "Climaton" mobile app (available for IOS and Android) and perform a software update.
  • Shutdown timer: yes

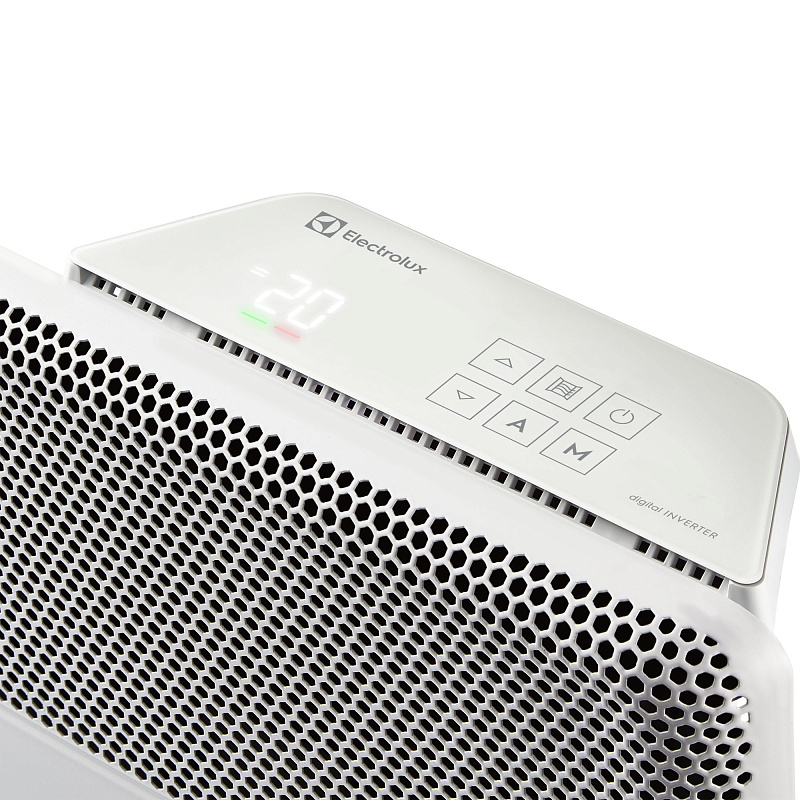

  Indication

  • Heating temperature display: yes
  • Digital display: yes
  • Power on indication: yes
  • Operation mode indication: yes

  Protection and safety

  • Overheat protection: yes
  • Emergency shutdown when tilted or overturned: no
  • Dust and moisture resistance class: IP24

  Ensemble

  • Floor installation kit: yes
  • Wall mounting kit: yes
  • Control panel included: no

  Packaging weight and dimensions

  • Product weight with packaging (gross): 4.37 kg
  • Product packaging height: 45.2 cm
  • Product packaging width: 68.7 cm
  • Product packaging depth: 14.7 cm
