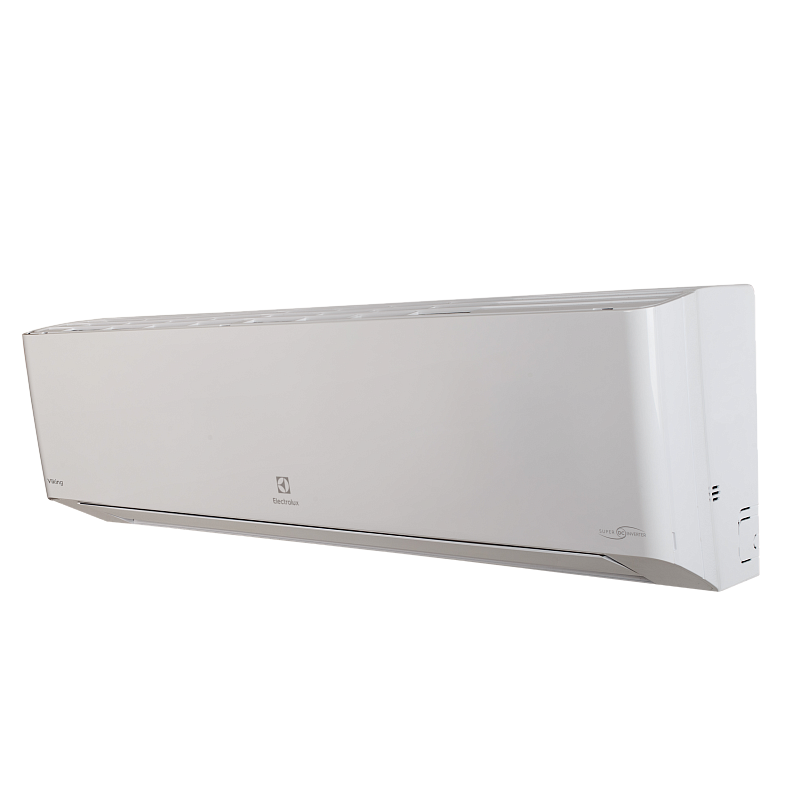

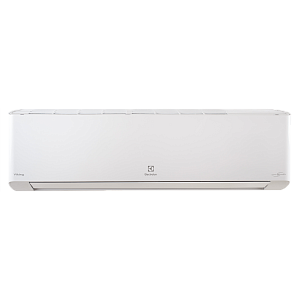

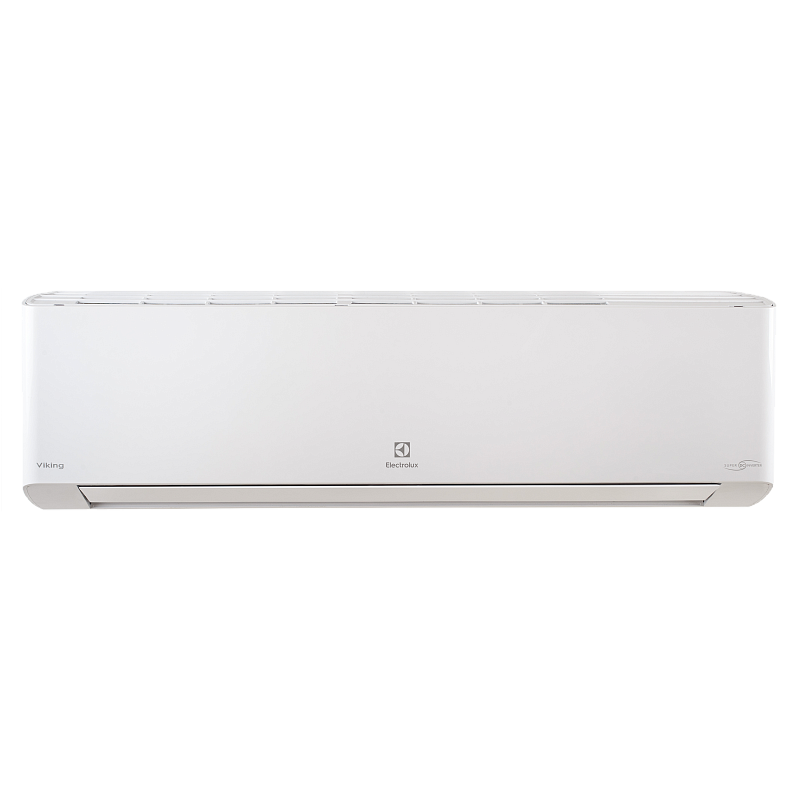

Inverter split system ELECTROLUX EACS/I-12HVI/N8_21Y EEC set

Data sheet

• Product features
  • Inverter technology
    yes
  • Energy efficiency class
    A+++
  • Max. power consumption
    2.6 kW
  • Min. operating air temperature for the outdoor unit
    -30 °С
  • Effective for premises up to
    35 m²



  Stable heating at -30 °C



  4D swing



  Plus temperature maintenance



  I-Feel function
• Key characteristics
  • Inverter technology
    yes
  • Energy efficiency class
    A+++
  • Max. power consumption
    2.6 kW
  • Min. operating air temperature for the outdoor unit
    -30 °С
  • Effective for premises up to
    35 m²
• Product documents
  Product documents

  • PDF Download PDF
  • PDF Download PDF
• All characteristics

  Main

  • Refrigerant: R32
  • Min. supported temperature: 16 °С
  • Max. supported temperature: 30 °С
  • Max. working air temperature for the external unit: 54 °С
  • Min. operating air temperature for the outdoor unit: -30 °С
  • Indoor unit case color: White
  • Outdoor unit case color: White
  • Warranty period: 2 years

  Consumer

  • Indoor unit noise level: 21 dB
  • Max. outdoor unit noise level: 54 dB
  • Effective for premises up to: 35 m²

  Performance

  • Max. heating performance: 7.2 kW
  • Max. cooling performance: 5 kW
  • Nominal heating capacity: 4.2 kW
  • Nominal cooling capacity: 3.5 kW

  Indication

  • Air temperature indication (near the control panel): yes
  • Digital display: yes

  Protection and safety

  • Energy efficiency class: A+++
  • Fault self-diagnosis system: no

  Ensemble

  • Air purification filters: Воздушный фильтр
  • Set of fasteners included: yes
  • Control panel included: yes

  Packaging weight and dimensions

  • Product weight with packaging (gross): 59.5 kg
  • Product packaging height: 34.8 cm
  • Product packaging width: 100 cm
  • Product packaging depth: 100 cm

  Technologies

  • Inverter technology: yes

  Control

  • Louvers position control from control box: yes
  • Temperature setting accuracy: 1,0 °С
  • Control type: Remote wireless
  • On timer: yes
  • Shutdown timer: yes
  • Real time setting: yes

  Modes

  • SLEEP mode: yes
  • Heating mode: yes
  • Dehumidification mode: yes

  Functions

  • Intensive cooling function: no
  • Hot start function: yes

  Mounting

  • Power consumption in heating mode: 950 W
  • Power consumption in cooling mode: 840 W
  • Max. power consumption: 2.6 kW
  • Max. trunk length (route): 20 m
  • Max. height difference between int. and outdoor units: 10 m
  • Network cable: Yes (with plug)
  • Power supply voltage: 220 - 240 V

  Product weight and dimensions

  • Outdoor unit weight (net): 45.5 kg
  • Outdoor unit height: 0.596 m
  • Outdoor unit width: 0.83 m
  • Outdoor unit depth: 0.3 m
  • Indoor unit weight (net): 12 kg
  • Indoor unit height: 0.301 m
  • Indoor unit width: 0.996 m
  • Indoor unit depth: 0.22 m
