• Series
    AQTRC 2.0
  • Max. performance l/min
    2 l/min
  • Water heating (delta temperature)
    20 - 50 °С
  • Overheat protection
    yes
  • Case color
    White
  • Warranty period
    2 years
Automatic power ON/OFF
Automatic power ON/OFF
Multiple water points
Multiple water points
Anti-corrosion Pullsten technology
Anti-corrosion Pullsten technology
Easy installation
Easy installation
  • Max. performance l/min
    2 l/min
  • Water heating (delta temperature)
    20 - 50 °С
  • Overheat protection
    yes
  • Case color
    White
  • Warranty period
    2 years
Product documents
Main
  • Water heater version: Wall-mounted unit
  • Outer body material: Plastic
  • Heating element material: Steel
  • Heating element type: Spiral-spring
  • Series: AQTRC 2.0
  • Case color: White
  • Warranty period: 2 years
  • Country of origin: PRC
Control
  • Temperature control: no
  • Control type: Mechanical
  • Temperature setting accuracy: -
Modes
  • Number of heating modes: 1
Protection and safety
  • RCD (residual current device): no
  • Dust and moisture resistance class: IPX4
  • Protection against switching on without water: yes
  • Overheat protection: yes
  • Fault self-diagnosis system: no
Ensemble
  • Fittings included: no
  • Set of fasteners included: yes
Packaging weight and dimensions
  • Product weight with packaging (gross): 1.67 kg
  • Product packaging height: 20.5 cm
  • Product packaging width: 11.2 cm
  • Product packaging depth: 21.6 cm
Consumer
  • Application area: Household equipment (for home use)
Performance
  • Water heating (delta temperature): 20 - 50 °С
  • Max. water temperature: 60 °С
  • Max. performance l/min: 2 l/min
  • Heating power levels: 4,20 kW
Indication
  • Heating temperature display: no
  • Display type: no
  • Power on indication: no
Mounting
  • Power cable cross section: 2,5 mm²
  • Min. working pressure: 1 bar
  • Outlet thread: 1/2 "
  • Inlet thread: 1/2 "
  • Type of connection: Upper
  • Max. working pressure: 7 bar
  • Max. power consumption: 4.2 kW
  • Installation type (mounting): Wall
  • Network cable: Yes (without plug)
Product weight and dimensions
  • Product weight (net): 1.42 kg
  • Product height: 14.1 cm
  • Product width: 19.1 cm
  • Product depth: 8.5 cm

Data sheet

  • Product features
    • Series
      AQTRC 2.0
    • Max. performance l/min
      2 l/min
    • Water heating (delta temperature)
      20 - 50 °С
    • Overheat protection
      yes
    • Case color
      White
    • Warranty period
      2 years
    Automatic power ON/OFF
    Automatic power ON/OFF
    Multiple water points
    Multiple water points
    Anti-corrosion Pullsten technology
    Anti-corrosion Pullsten technology
    Easy installation
    Easy installation
  • Key characteristics
    • Max. performance l/min
      2 l/min
    • Water heating (delta temperature)
      20 - 50 °С
    • Overheat protection
      yes
    • Case color
      White
    • Warranty period
      2 years
  • Product documents
    Product documents
  • All characteristics
    Main
    • Water heater version: Wall-mounted unit
    • Outer body material: Plastic
    • Heating element material: Steel
    • Heating element type: Spiral-spring
    • Series: AQTRC 2.0
    • Case color: White
    • Warranty period: 2 years
    • Country of origin: PRC
    Control
    • Temperature control: no
    • Control type: Mechanical
    • Temperature setting accuracy: -
    Modes
    • Number of heating modes: 1
    Protection and safety
    • RCD (residual current device): no
    • Dust and moisture resistance class: IPX4
    • Protection against switching on without water: yes
    • Overheat protection: yes
    • Fault self-diagnosis system: no
    Ensemble
    • Fittings included: no
    • Set of fasteners included: yes
    Packaging weight and dimensions
    • Product weight with packaging (gross): 1.67 kg
    • Product packaging height: 20.5 cm
    • Product packaging width: 11.2 cm
    • Product packaging depth: 21.6 cm
    Consumer
    • Application area: Household equipment (for home use)
    Performance
    • Water heating (delta temperature): 20 - 50 °С
    • Max. water temperature: 60 °С
    • Max. performance l/min: 2 l/min
    • Heating power levels: 4,20 kW
    Indication
    • Heating temperature display: no
    • Display type: no
    • Power on indication: no
    Mounting
    • Power cable cross section: 2,5 mm²
    • Min. working pressure: 1 bar
    • Outlet thread: 1/2 "
    • Inlet thread: 1/2 "
    • Type of connection: Upper
    • Max. working pressure: 7 bar
    • Max. power consumption: 4.2 kW
    • Installation type (mounting): Wall
    • Network cable: Yes (without plug)
    Product weight and dimensions
    • Product weight (net): 1.42 kg
    • Product height: 14.1 cm
    • Product width: 19.1 cm
    • Product depth: 8.5 cm

Product information

AQTRC 2.0 series — compact water heaters that, thanks to powerful copper spiral heating elements, quickly heat water. At the same time, you can choose the maximum power of the device that is optimal for you — these values are presented in two versions. The innovative technology of vibration protection against scale Pullsten contributes to a long service life of water heaters, and automatic switching on and off of heating with the start and stop of water supply serves as safety and convenience. Additional comfort is provided by the ability to connect to several taps - there is only one device, and there is water where it is needed.
Full description

You may like

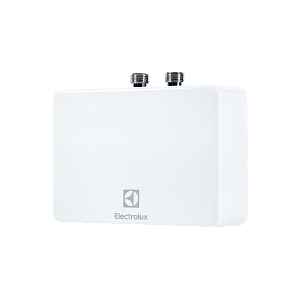

Instantaneous water heater Electrolux NP 6 AQTRC 2.0 EEC
