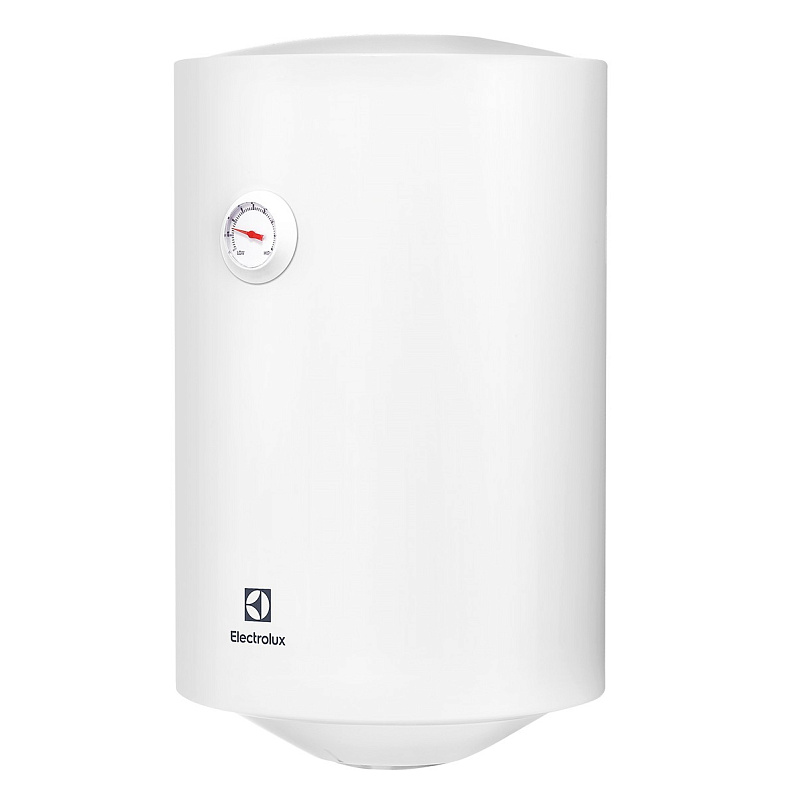

Electric water heater Electrolux EWH 50 QT EEC

Electric water heater Electrolux EWH 50 QT EEC

Full description

The design of the device may slightly differ from that presented on the site.

Series

QT EEC
Water heating time from 10°C to 75°C

159 min
Nominal volume

50 l
Max. power consumption

1.5 kW

Water heating time from 10°C to 75°C

159 min
Nominal volume

50 l
Max. power consumption

1.5 kW

Product documents

PDF Download PDF

Main

Outer body material: Metal
Inner tank material: Enamelled steel
Inner coating of the tank: Enamel
Nominal volume: 50 l
Heating element type: Tubular electric heater (TEH)
Case shape: Round
Case color: White
Series: QT EEC
Warranty period: 5 years for indoor capacity and 2 years for electrical components
Country of origin: PRC

Performance

Water heating time from 10°C to 75°C: 159 min
Min. water temperature: 30 °С
Max. water temperature: 75 °С
Ступени мощности нагрева: 1,50 kW

Indication

Rotate the display: no
Heating temperature display: no
Power on indication: yes
Display type: no

Mounting

Inlet thread: 1/2 inch
Network cable: Yes (with plug)
Max. power consumption: 1.5 kW
Outlet thread: 1/2 inch
Installation type (mounting): Indoor wall
Type of connection: Lower

Product weight and dimensions

Product weight (net): 17.5 kg
Product height: 70.3 cm
Product width: 38.5 cm
Product depth: 38.5 cm

Control

Thermostat type: Mechanical
Temperature control: Yes (mechanical regulator)
Control type: Mechanical
Temperature setting accuracy: Mechanical adjustment

Modes

Number of heating modes: 1

Protection and safety

Anti-calc: Magnesium anode
Corrosion protection: Oversized magnesium anode
Protection against switching on without water: no
Fault self-diagnosis system: no
Overheat protection: yes
Pressure relief valve: yes
Dust and moisture resistance class: IPX4

Ensemble

Set of fasteners included: yes

Packaging weight and dimensions

Product weight with packaging (gross): 19.6 kg
Product packaging height: 41.1 cm
Product packaging width: 45.8 cm
Product packaging depth: 80.5 cm

Data sheet

Product features
- Series

  QT EEC
- Water heating time from 10°C to 75°C

  159 min
- Nominal volume

  50 l
- Max. power consumption

  1.5 kW
Dry heating elements

Mechanical control

Effective thermal insulation

Multi-level protection of inner tank
Key characteristics
- Water heating time from 10°C to 75°C

  159 min
- Nominal volume

  50 l
- Max. power consumption

  1.5 kW
Product documents
Product documents
- PDF Download PDF
All characteristics
Main

Outer body material: Metal

Inner tank material: Enamelled steel

Inner coating of the tank: Enamel

Nominal volume: 50 l

Heating element type: Tubular electric heater (TEH)

Case shape: Round

Case color: White

Series: QT EEC

Warranty period: 5 years for indoor capacity and 2 years for electrical components

Country of origin: PRC
Performance

Water heating time from 10°C to 75°C: 159 min

Min. water temperature: 30 °С

Max. water temperature: 75 °С

Ступени мощности нагрева: 1,50 kW
Indication

Rotate the display: no

Heating temperature display: no

Power on indication: yes

Display type: no
Mounting

Inlet thread: 1/2 inch

Network cable: Yes (with plug)

Max. power consumption: 1.5 kW

Outlet thread: 1/2 inch

Installation type (mounting): Indoor wall

Type of connection: Lower
Product weight and dimensions

Product weight (net): 17.5 kg

Product height: 70.3 cm

Product width: 38.5 cm

Product depth: 38.5 cm
Control

Thermostat type: Mechanical

Temperature control: Yes (mechanical regulator)

Control type: Mechanical

Temperature setting accuracy: Mechanical adjustment
Modes

Number of heating modes: 1
Protection and safety

Anti-calc: Magnesium anode

Corrosion protection: Oversized magnesium anode

Protection against switching on without water: no

Fault self-diagnosis system: no

Overheat protection: yes

Pressure relief valve: yes

Dust and moisture resistance class: IPX4
Ensemble

Set of fasteners included: yes
Packaging weight and dimensions

Product weight with packaging (gross): 19.6 kg

Product packaging height: 41.1 cm

Product packaging width: 45.8 cm

Product packaging depth: 80.5 cm

Product information

Water heaters of the QT series, thanks to the classic round body, with a diameter of 34 cm, can be placed even in a small space.
Corrosion resistance is ensured by multi-level protection of all important structural elements of the Protect Tank: a finely dispersed enamel coating of the inner surfaces of the tank and an increased mass magnesium anode. The protection system — from overheating, from high hydraulic pressure and simple control make these devices a truly universal solution for the constant supply of hot water to the house.
